| DURA-SCAPE |
Escapements
Devices
SC-Series
Non-rotating Air Cylinders
|
 DURA-SCAPE
SC Series of Non-Rotating
Air Cylinders are designed as multi purpose units. These air-operated
devices provide the functionality of an air cylinder with the durability
and features you’ve come to expect from R&I. SC units
have a single, precision ground, non-rotating, square finger mated
with a machined square body with precision mounting features.

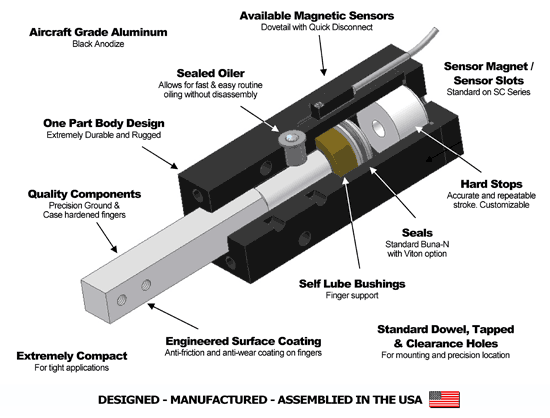

FEATURES
DURA-SCAPE
SC
Series sets the industry standard for their extreme durability and
rugged construction while still being low in cost. They provide
a precise and durable alternative to air cylinders with the added
capability to carry side loading. The single finger holder is square
in cross-section to present a large, slide bearing surface to minimize
surface wear. A flush type oiler with a ball closure permits easy
lubrication while maintaining a compact package. Hard stops are
provided for accurate and repeatable finger strokes with multiple
standard strokes available for customer specific design requirements.
Finger strokes can even be customized by end users to fit any need.
The units are fully field repairable with available seal kits. Furthermore,
the entire series is sensor ready.
DURA-SCAPE
SC
Series provides a precision ground finger with standard mounting
holes to allow tooling to be shaped to accommodate a wide array
of part sizes and shapes. A wide variety of body mounting holes
are provided to allow positioning of the units in a horizontal,
vertical or angular plane to suit any of your design requirements.
The
SC series of non-rotating air cylinders are ideal for use as:
• Low
cost thruster
• Precision clamping device
• Miniature Slide
• Precision Work holding device.
They can also be used in tandem or alone as feed escapement
devices.
 |

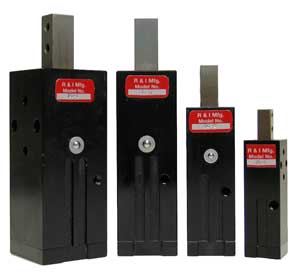

SC-1
• Body anodized high-strength aluminum
•
Finger holders hardened tool steel
•
Max Finger stroke 1/2"
•
Bore 9/16”
•
Max. air press. 80 psi
CAD library / Catalog Pages / PDF Print |
|
 |
SC-2
• Body anodized high strength aluminum
•
Finger holders hardened tool steel
•
Max Finger stroke 3/4"
•
Bore 5/8”
•
Max. air press. 80 psig
CAD library / Catalog Pages / PDF Print |
|
 |
SC-3
• Body anodized high strength aluminum
•
Finger holders hardened tool steel
•
Max Finger stroke 1"
•
Bore 7/8”
•
Max. air press. 100 psig
CAD library / Catalog Pages / PDF Print |
|
 |
SC-4
• Body anodized high strength aluminum
•
Finger holders hardened tool steel
•
Max Finger stroke 1"
•
Bore 1-1/8”
•
Max. air press. 100 psig
CAD library / Catalog Pages / PDF Print |
