DURA-SCAPE
Escapements Devices
BC-Series
Feed Escapement Devices

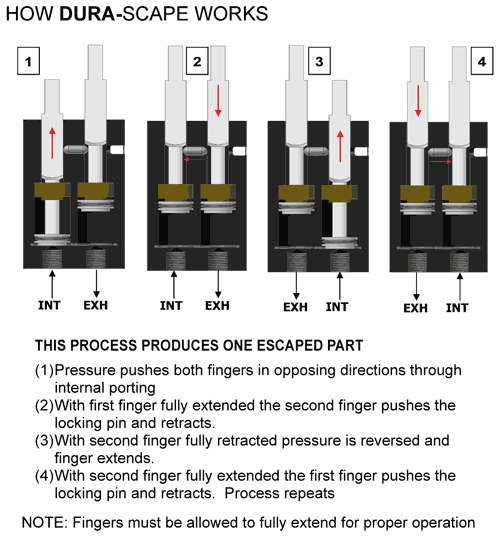

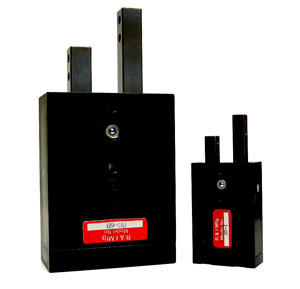

DURA-SCAPE BC Series Escapement Devices are designed to isolate parts at the end of feed chutes or raceways to facilitate individual feeding of parts. These air-operated devices provide positive part control by forcing one finger to always be in contact with the parts. This process eliminates any possibility of jammed parts and multiple feeds.

FEATURES

DURA-SCAPE BC Series set the industry standard for their extreme durability and rugged construction while still being low in cost. They provide a practical, reliable alternative for expensive escapement mechanisms. The two finger holders are square in the cross-section to present large, slide bearing surfaces to minimize surface wear. A flush type oiler with a ball closure permits lubricating both finger holders simultaneously while maintaining a compact package. Hard stops are provided for accurate and repeatable finger strokes with multiple standard strokes available for specific design requirements. Finger strokes can even be customized by end user to fit any need. The units are fully field repairable with available repair kits. Furthermore sensors are available for the entire product series.

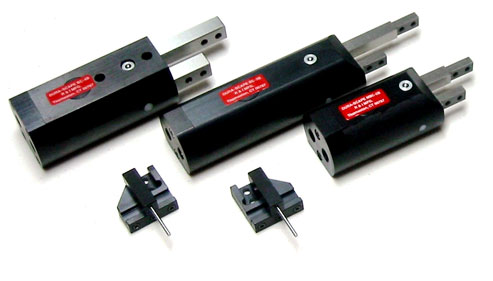

MOUNTING STYLES

DURA-SCAPE BC Series provide precision ground fingers with standard mounting holes allowing tooling to be shaped to accommodate a wide array of part sizes and shapes. A wide variety of body mounting holes are provided across the product line to allow positioning of the units in a horizontal, vertical or angular plane to suit the feed chute arrangement.

The BC series of feed escapements are perfect for demanding applications where accurate, repeatable, and reliable part isolation is required.

BC-1
• Body anodized high strength aluminum
• Finger holders hardened tool steel
• Finger stroke 1/2" max. stroke
• Bore 9/16”
• Max. air press. 80 psig

CAD library / Catalog Pages / PDF Print


BC-2B
• Body anodized high strength aluminum
• Finger holders hardened tool steel
• Finger stroke 3/4"* max. stroke
• Max. air press. 80 psig
*Two nylon sleeves are supplied. When cut to length and inserted behind the piston, this will reduce the stroke down to 3/16" min.

CAD library / Catalog Pages / PDF Print


BC-2BLS
• 1 1/2” Long Stroke version of BC-2B – Consult Factory for more information

CAD library / Catalog Pages / PDF Print

BC-4B
• Finger stroke 1"** max. stroke
• Max. air pres 100 psig
• Bore 7/8"
*Two nylon sleeves are supplied. When cut to length and inserted behind the piston, this will reduce the stroke down to 1/4" min.

CAD library / Catalog Pages / PDF Print

BC-6B
• Body anodized high strength aluminum
• Finger holders hardened tool steel
• Finger stroke 1 1/4" max. stroke
• Bore 1 1/8"
• Max. air press. 100 psig

CAD library / Catalog Pages / PDF Print


AT-1-LT
• Optional Adjustable Spring Loaded for the BC-1

CAD library / Catalog Pages / PDF Print

AT-2-LT
• Optional Adjustable Spring Loaded for the BC-2B

CAD library / Catalog Pages / PDF Print
