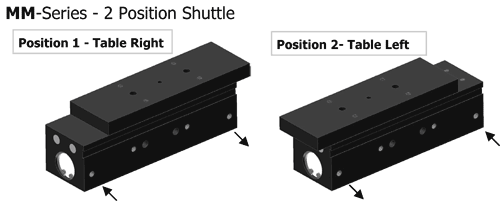

MM Series SPECIFICATIONS 2 Position Air Shuttle Rod material – 1/4” [6.35mm] case hardened ground steel rods Block material - 2024 Aluminum – Hard Coat (black) Type of cylinder – Repairable Double acting Air requirement – 40 to 100 psi MAX [3-7 bar] Thrust Force @80psi / 5.5bar - 24.5 lbs [109 N] Weight – 1.15 lbs [0.52 kg] Cylinder Bore Diameter – 0.625” [15.9mm] Stroke Range - 0.250” to 1.250” [6.4mm – 31.7mm] CAD library / Catalog Pages / PDF Print
