DURA-SLIDE
Air Shuttles
JJ Series

JJ Series SPECIFICATIONS

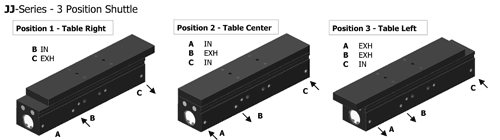

3 Position Air Shuttle

  • Rod material – 1/4” [6.35mm] case hardened ground steel rods
  • Block material - 2024 Aluminum – Hard Coat (black)
  • Type of cylinder – Repairable Double acting
  • Air requirement – 40 to 100 psi MAX [3-7 bar]

  • Thrust Force @80psi / 5.5bar - 24.5 lbs [109 N]
  • Weight – 1.8 lbs [0.82 kg]
  • Cylinder Bore Diameter – 0.625” [15.9mm]
  • Stroke to left or right – 0.625” [15.9mm] (custom strokes available – contact us)


  • CAD library / Catalog Pages / PDF Print

With free Acrobat Reader® software, you can view and print Adobe PDF files.
