DURA-SCAPE
Escapements Devices
CC-Series
Non-rotating Air Cylinders

DURA-SCAPE CC Series of Economy Non-Rotating Air Cylinders are designed as multi purpose units. The CC series is designed for applications where all the features of our SC series are not required, while still offering the time-tested quality construction and durability you’ve come to expect. These air-operated devices provide the same functionality as the SC Series but offer simplified mounting and optional use of sensors.

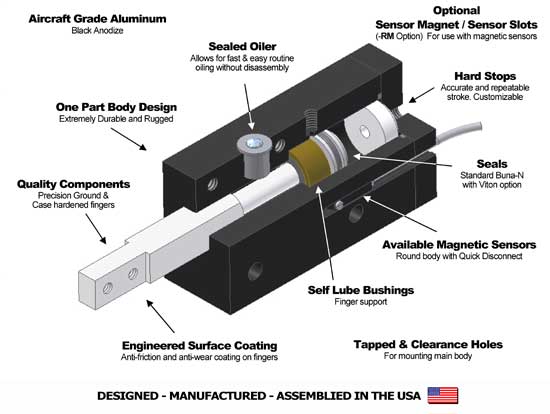

FEATURES

DURA-SCAPE CC Series sets the industry standard for their extreme durability and rugged construction while still being low in cost. They provide a precise and durable alternative to air cylinders with the added capability to carry side loading. CC units have a single, precision ground, non-rotating, square finger mated with a machined body. The single finger holder is square in cross-section to present a large, slide bearing surface to minimize surface wear. A flush type oiler with a ball closure permits easy lubrication while maintaining a compact package. Hard stops are provided for accurate and repeatable finger strokes. Finger strokes can be customized by end user to fit any need. The units are fully field repairable with available seal kits.

MOUNTING STYLES

DURA-SCAPE CC Series provide a precision ground finger with standard mounting holes to allow tooling to be shaped to accommodate a wide array of part sizes and shapes. Tapped and clearance holes are provided to allow positioning of the units in a horizontal, vertical or angular plane to suit any of your design requirements.

The CC series of non-rotating air cylinders are ideal for use as:

• Low cost thruster
• Precision clamping device
• Miniature Slide
• Work holding device.

They can also be used in tandem or alone as feed escapement devices.

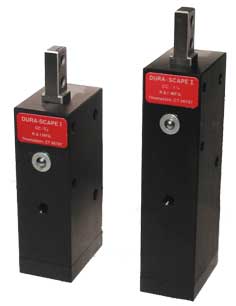

CC-1
Body anodized high-strength aluminum
• Finger tool steel
• Finger stroke 3/4"
• Piston diameter 5/8"
• Max. air press. 80 psi

CAD library / Catalog Pages / PDF Print


CC-2
• Body anodized high-strength aluminum
• Finger tool steel
• Finger stroke 1 ¼"
• Piston diameter 5/8"
• Max. air press. 80 psi

CAD library / Catalog Pages / PDF Print
