DURA-GRIP
Parallel Grippers
LP Series
DURA-GRIP LP Series of Part Placement Devices is designed to provide a low cost gripping unit for use in applications where the minimum overall height is critical. The LP series provides an exceptional amount of finger stroke when compared to other units of similar height. These air operated units grip parts internally or externally offering the designer a wide latitude in finger tooling arrangements. All units are shipped completely assembled ready for mounting and attaching tooling.

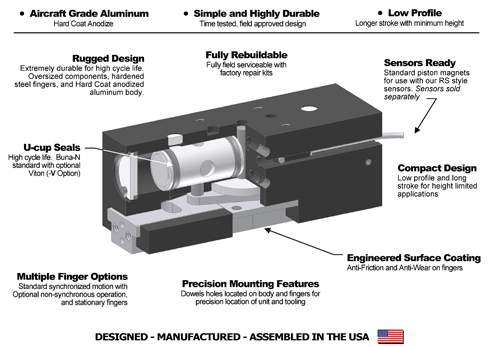

QUALITY CONSTRUCTION

DURA-GRIP LP Series is ruggedly constructed with a minimum of moving parts. The high strength aluminum body is hard coated, and the fingers are hardened steel for excellent durability. The fingers are fully supported through their entire stoke providing high moment capacity and longer finger lengths.

MOUNTING INFORMATION
DURA-GRIP LP Series can be mounted and operated in any plane and orientation. Standard mounting holes and precision dowels holes are provides on top and back of unit for easy mounting.

ADDITIONAL FEATURES

DURA-GRIP LP Series is sensor ready for use with magnetic sensors to sense open and closed positions. Many finger options are available including synchronous, non-synchronous operations, and stationary fingers.

Use the LP Series of Parallel Grippers wherever you need low-profile, durable and precise part placement.

LP-75
  • Low Profile Design
  • Bore Dia – 0.625” [15.9mm]
  • Finger Stroke – 0.750” [19.1mm]
  • Weight – 0.9 lbs [0.41 kg]
  • Standard Grip force – 25 lbf [111.1N]
  • CAD library / Catalog Pages / PDF Print

LP-100
  • Low Profile Design
  • Bore Dia – 0.625” [15.9mm]
  • Finger Stroke – 1.000” [25.4mm]
  • Weight – 1.1 lbs [0.5 kg]
  • Standard Grip force – 25 lbf [111.1N]
  • CAD library / Catalog Pages / PDF Print
